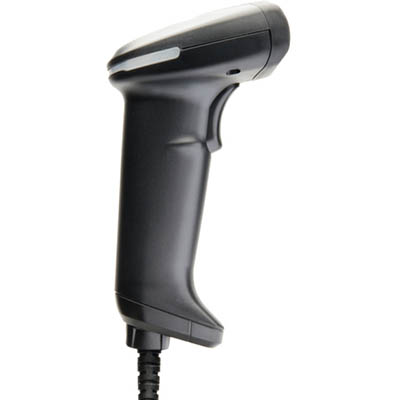

OPTICON OPL-43 1D LASER BARCODE SCANNER BLACK

Code: 7071852
Brand: OPTICON
Colour: BLACK
Stock level:
Delivery (2-5 Days)
  • The Opticon L-46X is a fast laser scanner that comes with a stand
  • The L-46 scans at a speed of 100 frames per second
  • The cables are interchangeable, making it easy to switch between USB or RS-232 interface
  • 1D handheld laser barcode scanner with USB interface
  • Includes USB cable and desktop stand
  • 100 Scans per second
  • Auto Trigger option
  • High speed moving object scanning

$168.18

$185.00 Inc GST

EACH

Add

Features
  • Scan Engine: Red Laser
  • Light Source: 645-664 nm visible laser diode
  • Scan Pattern: Single Line, Bi-Directional
  • Scan Rate: 100 Scans/sec
  • Resolution: 0.076 mm
  • Depth of field: 20 - 895 mm (res. 1.0 mm / 39 mil), 0 - 495 mm (res. 0.5 mm / 20 mil), 0 - 300 mm (res. 0.33 mm / 15 mil), 5 - 200 mm (res. 0.25 mm / 9.84 mil), 5 - 90 mm (res. 0.15 mm / 6 mil), 10 - 60 mm (res. 0.127 mm / 5 mil), at PCS 0.9, Code 39
  • Tilt Angle: -20 to 0 degrees, 0 to +20 degrees
  • Pitch Angle: -35 to 0 degrees, 0 to +35 degrees
  • Skew Angle: -50 to 0 degrees, 0 to +50 degrees
  • Ambient Light Immunity: Fluorescent 4,000 lux max, Direct Sun 80,000 lux
  • Symbologies supported: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Industrial 2of5, Interleaved 2of5, Matrix 2of5, MSI/Plessey, Composite codes, MicroPDF 417, PDF417
  • Programming Method: Scan Barcodes from Manual
  • Indicators: 1 x Scan Key, Visual 1 White LED, Buzzer, vibrator
  • Operating Modes: Manual Trigger, Auto Trigger, Stand Detection
  • Communication Type: Cabled
  • Interfaces: RS232 - DB9 PTF connector with external power supply, USB - Ver. 2.0, HID/COM, USB-A connector
  • Supply Voltage: 5 V +-10 %
  • Power Consumption: Max. 155 mA (typical use)
  • Drop Specification: 1.8 m drop onto concrete surface, 10 - 100 Hz with 2G for 1 hour
  • Environmental Sealing: IP42
  • Operating Environment: -5 to 50 C, RH 5 - 90 % (non-condensing)
  • Storage Environment: -30 to 60C, RH 5 - 90 % (non-condensing)
  • EMC/Safety Standards: CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
  • External Dimensions: Scanner 105.4(w) x 60(d) x 153.4(h)mm, Stand 53(w) x 73(d) x 112(h)mm
  • Weight: Scanner 112 g (excl. Cable), Stand 365 g
  • Colour: Black
  • OEM: OPL-43
