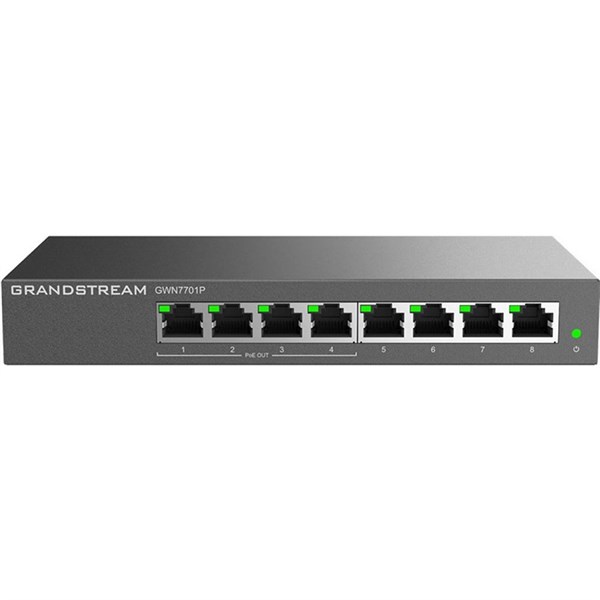

GRANDSTREAM GWN7701P NETWORK SWITCH UNMANAGED 8 PORT 4 POE BLACK

Code: 7115860

Brand: GRANDSTREAM

Stock level:	In Stock

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses
It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables
Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance
The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints
The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to-medium businesses
Features
5 and 8 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA)
Green technology reduces power consumption
LED Indicators; Per port: Link/Activity/Speed Per device: Power
Auto MDI/MDIX crossover for all ports
802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/GWN7701PA only)
Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
Unlink clear FDB Feature (GWN7701/GWN7701P/GWN7701PA only)
QoS - Supports Default Strict Priority when present

EACH

Features

Gigabit Ports: 8
PoE Ports: 4
Enclosure: Metal
Mounting: Desktop/ Wall-Mount
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Port Feature: 8 x 10/100/1000Mbps RJ45 Ports; AUTO Negotiation; AUTO MDI/MDIX
Network Media: 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration: 1 to 4 Ports 802.3 af/at compliant; Up to 30 W on Each Port, Total 60W Power Budget; Overload to cut off the lowestpriority port; Priority: Port 4 to Port 1
LED Indicators: Per port- Link/Activity Green; Per device- Power Green
Mac Address Table: 8K
Switching Capacity: 16Gbps
Jumbo Frame: 9KB
Advanced Features: Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, Unlink clear FDB Feature, IGMP- IGMP Fast-Leave, IGMP Snoop, Route Port Autolearn, Query Refresh Member Port
Power Adapter: External 48-53.5VDC/1.22A
Max Power Consumption by Base System: 3W (excluding PoE output power)
Environmental: Operating Temperature: 0 to 40 degree C (32 to 104 degree F), Storage Temperature: -20 to 60 degree C (-4 to 140 degree F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing
Dimension: Unit: 190 x 100 x 28mm, Package: 230 x 210 x 51mm
Weight: Unit: 0.44Kg, Entire Package: 0.92Kg
Package Includes: 1x Switch, 1x Power Adapter, 1x QIG
Compliance: FCC, CE, RCM, IC, UKCA
OEM: GWN7701P
